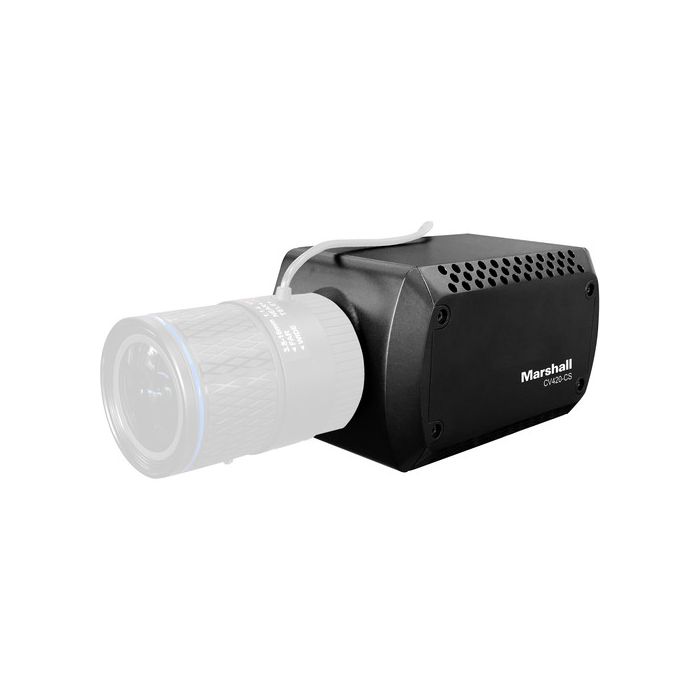

Marshall Electronics CV420-CS 12.4MP Compact 4K60 Camera with 12G-SDI and HDMI Output (No Lens)

SKU

CV420-CS

Request for Price

Product Highlights :

12G-SDI & HDMI 2.0 outputs
12 Megapixel (1/1.7") Sony sensor (4:2:2)
Flexible CS/C-lens mount (Canon EF adapters available)
True-4K: 4096 x 2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
Ultra-HD: 3840 x 2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
HD (Progressive): 1080p / 720p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The Marshall CV420-CS is a true 4K camera built around a 12.4-Megapixel, 1/1.7-inch sensor delivering ultra-crisp, clear true 4K resolution in 4096x2160p at 60fps. CV420-CS contains a single 12G (BNC) and a simultaneous HDMI 2.0 output covering a variety of 4K/UHD/HD applications. Flexible CS/C lens mount format offers a wide range of lens options with DC Auto-Iris plug-in capability.

CV420 is a versatile and powerful camera solution in an easy to understand design. Remote adjust and match control is delivered via RS485 (Visca) or OSD menu joystick on breakout-cable. A wide range of picture adjustment settings are available such as paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma and more. The CV420-CS can capture detailed shots while maintaining a discrete presence and can be used as a fixed 4K wide shot where select HD windows can be captured and used within the frame in post.

Features :

12G-SDI & HDMI 2.0 outputs
12 Megapixel (1/1.7") Sony sensor (4:2:2)
Flexible CS/C-lens mount (Canon EF adapters available)
True-4K: 4096 x 2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
Ultra-HD: 3840 x 2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
HD (Progressive): 1080p / 720p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps
TRS stereo audio inputs (mic & line level)
Remote adjust through RS485 (Visca) or OSD menu joystick
Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma and more
Includes 12V power supply in box

CV420-CS Applications:

The CV420-CS is suitable for use in flexible workflow environments including live broadcast production, sportscast, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more Broadcast and ProAV applications

More Information

CV420-CS - Specification

More Information

Imaging
Image Sensor:	1/2.5" 8 MP CMOS
Supported Video Resolutions:	UHD 4K: 59.94/50/29.97/25 1080p: 59.94/50/29.97/25 720p: 59.94/50/29.97/25
Zoom Ratio:	Optical: 30x
Focal Length:	4.6 to 135mm
Horizontal Angle of View:	68-3.5°
Aperture Range:	f/1.5 to f/3.4
Shutter Speed:	1 to 1/10,000 Second
Minimum Object Distance:	Wide/Telephoto: 4.9' / 1.5 m
Video S/N Ratio:	> 50 dB
Minimum Illumination:	Color: 0.1 Lux, f/1.6, 50 IRE, AGC On Night Mode: BW: 0.02 Lux, f/1.6, 50 IRE, AGC On
Filter Design:	Day, Night Modes: Mechanical IR Cut Filter
Presets:	128
View Patrol:	Groups: 4
Iris Control:	Auto, Manual (Remote Control)
Autofocus:	Auto, One-Push fast AF, Interval AF Zoom Trigger AF, Zoom Tracking, ICR Compensation AF
Exposure Control:	Auto Mode: WDR (Wide Dynamic Range) Mode Shutter Speeds: Manual: 1 to 1/10,000 Sec Shutter Priority: 1 to 1/10,000 Sec Flickerless: NTSC: 1/60 Sec, PAL: 1/50 Sec
Gain Control:	Auto, Manual
White Balance:	Auto: 2500K to 7500K ATW: 2000K to 10,000K Manual: R/B Gain, One-Push WB Indoor: 3200K Outdoor: 5800K
Backlight Compensation:	On, Off
Defog:	Yes
Exposure Compensation:	Auto/Flickerless/Shutter-Priority Mode: -7 to +7
Gamma Correction:	Yes
Sharpness:	Configurable
Noise Reduction:	2D/3D Noise Reduction
Dynamic Range:	Wide Dynamic Range, 120 dB
Privacy Mask Type:	Spherical Zone Mask
Orientation:	Off, Flip, Mirror, Both
Electronic Image Stabilization:	Yes
Encoder Video Profile:	Multiple Profiles
Video Standard:	H.265, H.264, MJPEG, Haivision SRT
Zoom Ratio::
Video Streaming
Output Modes:	HDMI or Single Stream Output: UHD 4K: 59.94/50 Simultaneous HDMI & Streaming Outputs: UHD 4K: 29.97/25 1080p: 59.94/50/29.97/25 720p: 59.94/50/29.97/25
Multiple Streaming:	Triple Streaming Structure: H.265 8M 60 fps, H.264 2M 60 fps, H.264 D1 30 fps HDMI
Data Rate:	CBR: 64 to 20000, Default: 8000 CVBR: 64 to 20000, Default Max: 8000 VBR: 1 to 10 MJPEG: High, Mid, Low
System Compatibility:	ONVIF Profile S
Protocols:	ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP IGMP, IPv4/6, NTP, RTSP/RTCP/RTP, QoS SMTP, SNMP, TCP, TLS/TTLS, UDP, UPnP 802.1X, SRT, MPEG-TS
Internet Security:	IEEE 802.1X HTTPS
Audio
Audio Compression Format:	G.711
Audio In:	Line In, 3.5 mm (Stereo/Mono)
Audio Out:	Line Out, 3.5 mm (Stereo/Mono)
Interface
HDMI Out:	1 x HDMI Type A, HDMI 2.0
Ethernet:	1 x RJ45
Control Interface:	RS-232, IP
RS-232:	In: 1 x 8-Pin Mini DIN
Power
DC In:	12 V +/- 20%
PoE:	802.3 af
Power Consumption:	< 12 W
Physical & Environmental
Tripod Mount Thread:	1/4"-20
Operating Temperature:	32 to 104°F / 0 to 40°C
Storage Temperature:	-4 to 140°F / -20 to 60°C
Dimensions (WxDxH):	7.4 x 2.6 x 2.6" / 188.4 x 67 x 67 mm
Weight:	2.2 lb / 1 kg
Packaging Info
Package Weight:	3.73 lb
Box Dimensions (LxWxH):	10.9 x 6.7 x 3.5"
Package Weight:	2.805 lb
Box Dimensions (LxWxH):	13.05 x 5.45 x 4.15"

Sensor:	12.4 MP, 1/1.7" Sony
Lens Mount:	CS/C
Resolution:	4096 x 2160p: 60/59.94/50/30/29.97/25/24/23.98
:	3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98
:	1080p: 60/59.94/50/30/29.97/25/24/23.98
:	1080i: 60/59.94/50
:	720p: 60/59.94/50/30/29.97/25/24/23.98
Mount:	2 x 1/4"-20 Universal Mounting Screws
Connectors:	1 x 12G-SDI BNC: Video Output
:	1 x HDMI 2.0: Video Output
:	2 x Micro-USB: Firmware Update Ports
:	1 x DC-Auto Iris Control Port
:	1 x Breakout Port: Power/Control/Audio
Indicator:	1 x Power Indicator
Breakout Cable Connectors:	Connector 1:
:	1 x Breakout Port
:	Connector 2:
:	1 x 12 VDC Power Input
:	1 x RS-485 Control Port
:	1 x TRS Stereo Audio Line Input
:	1 x Audio Microphone Input
Compatible Lenses:	CS-0734-12MP, CS-3.2-12MP, CS-5.0-12MP, and CS-1040-8MP
